China Tri-metal Contact rivet Manufacturer and Supplier

Tri-metal Contact rivet

Short Description:

The performance of tri-metal rivet is close to solid rivet, but it’s more economical. It’s widely used in low voltage electronic equipment. Such as switches, relays, contactors, controllers etc. FOB Price: US $0.001- 1.2 / Piece Min.Order Quantity: 100 Piece/Pieces Supply Ability: 10000 Piece/Pieces per Month

Send email to us Download as PDF

Product Detail

Product Tags

Product Features

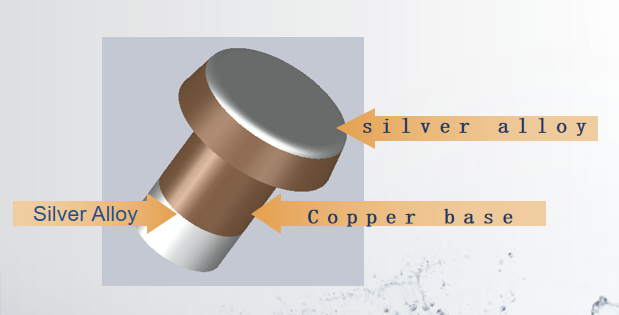

1.Tri-metal rivet can replace solid rivet.It widely used as moving contacts during two sides of contact,to a great extent reduce the material cost.

2.mprove the contact rivet riveting performance.

3.Apply continuous automation production.

Main Application

Automobile electric appliances,household appliances,replays,contactor,

Thermostat,all kinds of switch,aviation appliances,timer and electronic appliances.

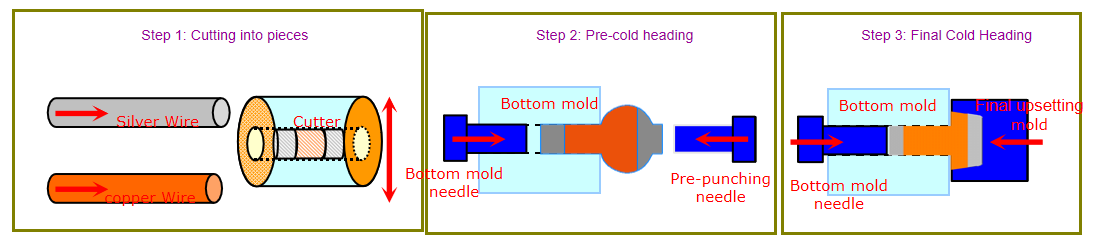

Process flow

Rivet Making

Annealing

Finishing

Inspection

Drawing

Packing

Measure

Item	Head diameter D（mm）	Head thickness T(mm)	Head Silver S(mm)	Foot diameter d(mm)	Foot length L（mm）	Foot Silver S(mm)	Sphere radius R（mm）
Basic dimension	3~5.1	0.45~1.2	0.2~0.5	1.8~3	0.8~2.8	0.25~0.65	8~20
tolerance	±0.05	－0.02∽ ＋0.05	±0.05	－0.02∽ ＋0.10	±0.05	±0.05	±2

Advantage

Three composite rivets can replace the double-sided contact silver alloy overall rivet contact, and can save 30% to 65% of material costs without affecting the performance of the use, in order to reduce costs for customers and save resources for the country.
