99.95 Molybdenum Pure Molybdenum Product Moly Sheet Moly Plate Moly Foil In High Temperature Furnaces And Associated Equipment

Short Description:

Item: molybdenum sheet/plate

Grade: Mo1, Mo2

Stock size: 0.2mm, 0.5mm, 1mm, 2mm

MOQ: hot rolling, cleaning, polished

Stock: 1 kilograms

Property: anti-corrosion, high temperature resistance


Product Detail

Product Tags

Product Parameters

Item molybdenum sheet/plate
Grade Mo1, Mo2
Stock size 0.2mm, 0.5mm, 1mm, 2mm
MOQ hot rolling, cleaning, polished
Stock 1 kilograms
Property anti-corrosion, high temperature resistance
Surface Treatment Hot-rolled alkaline cleaning surface
Electrolytic polish surface
Cold-rolled surface
Machined surface
Technology extrusion, forging and rolling
Test and Quality dimension inspection
appearance quality test
process performance test
mechanical properities test
The specification would be changed by the customers’ requirements.

Specification

Width, mm Thickness, mm Thickness deviation, min, mm Flatness, %
<300mm >0.13mm ±0.025mm 4%
≥300mm >0.25mm ±0.06mm 5%-8%

Purity(%) Ag Ni P Cu Pb N
<0.0001  <0.0005  <0.001  <0.0001  <0.0001  <0.002
Si Mg Ca Sn Ba Cd
 <0.001  <0.0001  <0.001  <0.0001  <0.0003  <0.001
Na C Fe O H Mo
 <0.0024  <0.0033  <0.0016  <0.0062  <0.0006  >99.97

Specification

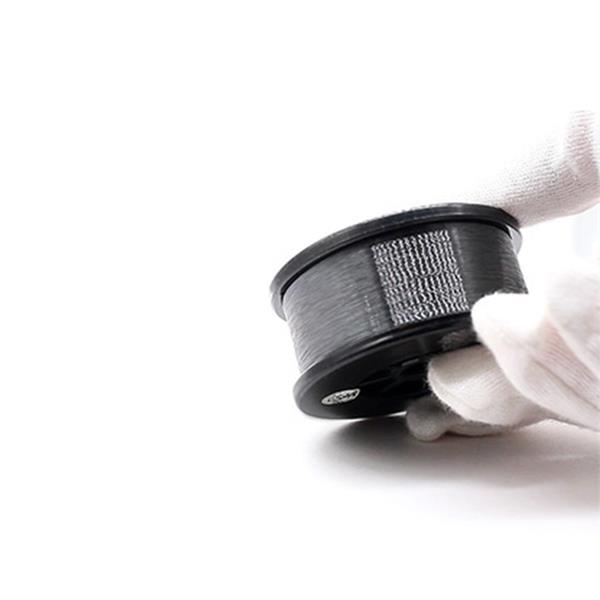

Specifications for molybdenum wire:
Molybdenum Wire Types Diameter (inch) Tolerance (%)
Molybdenum Wire for EDM 0.0024″ ~ 0.01″ ±3% wt
Molybdenum Spray Wire 1/16″ ~ 1/8″ ±1% to 3% wt
Molybdenum Wire 0.002″ ~ 0.08″ ±3% wt
Molybdenum Wire(clean) 0.006″ ~ 0.04″ ±3% wt

Specificantions Range

1)   Thickness: Hot-rolled plate:1.5~40mm; Cold-rolled plate/sheet:0.05~3.0mm

2)   Width: Hot-rolled plate:≤750mm; Cold-rolled plate/sheet: ≤1050mm;

3)   Length: Hot-rolled plate:≤3500mm; Cold-rolled plate/sheet: ≤2500mm

Application

Classification Feature Application field
Pure Mo plate High melting point, high purity, low thermal expansivity, excellent thermal conductivity, welding performance and processability Widely used for manufacturing electron (ion) beam sputtering target, spare parts for ion implantation machine, heat sink of semiconductor, parts of electron tube, MOCVD equipment, and medical device, hot zone, crucible and supporting elements for sapphire crystal furnace, heater, heat shield, supporting element, and boat for vacuum and drogen shielded heating furnace
Pure Mo plate treated in high temperature High-purity, consistent in psical and chemical property, and excellent high temperature anti-deforming capability Suitable for manufacturing base plate for precision electronic ceramics and rear-earth material
Lanthanum-doped Mo plate By using oxide dispersion strengthening mechanism, certain plastic deformation could be performed under room temperature after being treated in high temperature because of its high strength, high recrystallization temperature and excellent high-temperature strength and improved recrystallization brittleness and high temperature anti-deforming capability  particularly suitable for fabricating components used in more than 1500℃ work environment, such as heater, heat shield, base plate and boat for high temperature furnace
Lanthanum-doped Mo plate treated in high temperature Excellent high-temperature strength, and low high temperature deformation due to its oxide dispersion strengthening effect and specific structure  suitable for making base plate for sintering fine ceramics and rear-earth ceramic, bearing rack, base plate and coat for high temperature heating furnace
Doped Mo plate High temperature strength, low recrystallization temperature, and excellent high-temperature creep resistant performance because of its potassium bubble strengthening mechanism particularly suitable for fabricating products with low high-temperature creep, such as components for electron tube, heater, heat shield, and so on for high temperature furnace
Doped Mo plate treated in high temperature Low high-temperature creep due to its long grain staggered structure and high purity suitable for making products with high requirement to purity and high-temperature creep, such as base plate for electronic ceramics sintering or heat-treating, supporting elements in electron tube, and so on
Cross-rolled pure Mo plate Low anisotropy and good bending performance  particularly suitable for elongating, spinning, reinforcing and bending, and making elongating or spinning Mo crucible, Mo parts need to reinforce or bend, such as corrugated sheet, bending piece, Mo boat, and so on
Cross-rolled pure Mo plate treated in high temperature Low anisotropy and good bending performance besides same performance of Lanthanum-doped Mo plate  particularly suitable for reinforcing and bending, and making reinforced or bended Mo parts with high temperature requirement, such as heating zone, bended fabricated parts, high-temperature Mo boat, and so on
